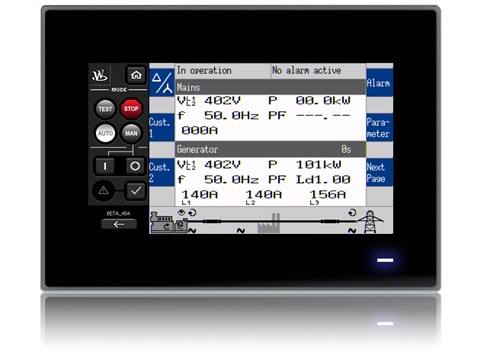

Woodward’s RP-3000XT

is a touch screen remote control and annunciation panel for use with the XT family power management controls. It offers switchgear builders, genset packagers, and system integrators an off-the-shelf HMI option for any application where a secure remote control, monitoring and visualization is desired, such as hospitals, data centers, offshore rigs, landfill and wastewater gas-to-power applications to name a few.
The RP-3000XT is particularly useful with the back panel mounted easYgen-3100XT/3400XT or LS-6XT, providing control from the front panel with greatly reduced wiring to the access door, while keeping high voltage connections located safely on the back panel. Commissioning RP-3000XT is very quick as it requires no service tool, making it ideal for minimizing field engineering.

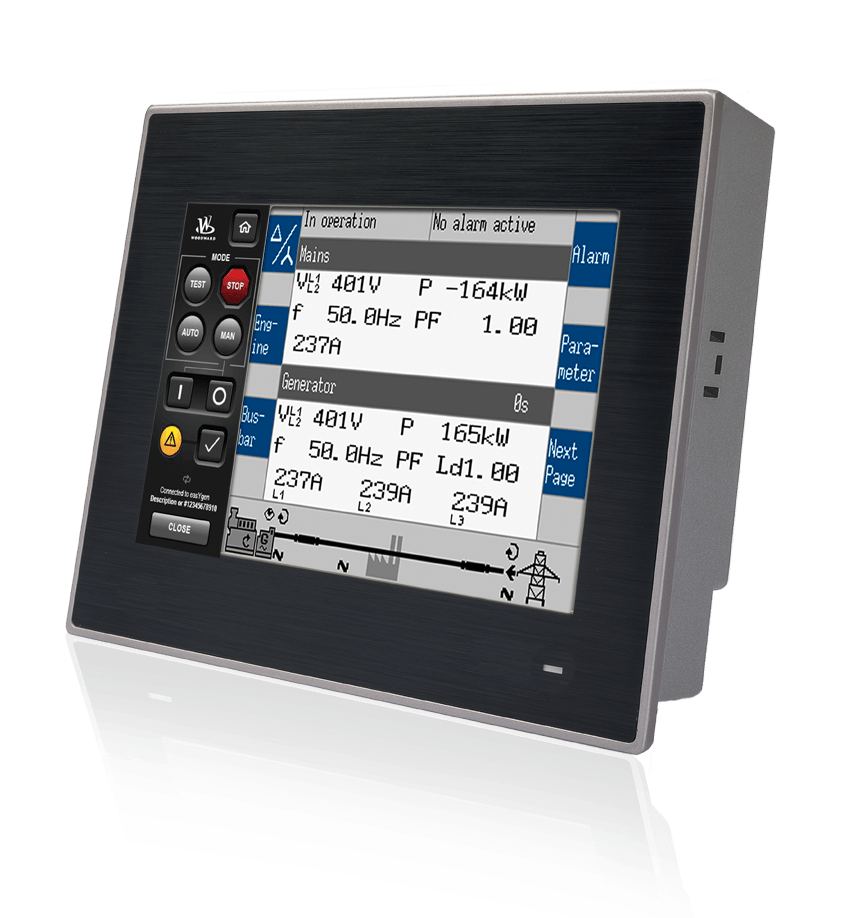

ANNUNCIATOR-RP-3000XT REL2

Part Number: 8446-1068

Remote Control and Annunciation Panel


Please contact us if you need more informations.

    This combination does not exist.



    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    Plug-and-Play remote operator control panel for:

    • easYgen 3000XT Series genset controls

    • easYgen | LS-6XT Series circuit breaker controls

    • Use as full mirror of HMI resources, or only for annunciation or turn it completely off

    • Minimize commissioning time, offers connection to a fleet of controls (one at a time)

    • Offers on-the-fly configuration with same security levels as the connected control

    • Simplifies wiring to the access door and keeps high voltage connections remote

    • Small footprint makes compact installations

    • Touch screen and Color display

    • Ethernet communication to the connected control

    • Multi-lingual Capability

    • Personalization by end user CE Marked UL/cUL Listing (61010)

    Downloads

    Specification

    Name Open
    REMOTE PANEL RP-3000XT PRODUCT SPECIFICATION Open

    Manual

    Name Open
    REMOTE PANEL RP-3000XT TECHNICAL MANUAL Open
