Woodward easYgen-100

series is designed for a single-generator set used in isolated stand-by or prime power applications. The controllers include purpose-built algorithms and logic to start, stop, control, and protect the genset, and open/close circuit breakers. Equipped with state-of-the-art communication interfaces, Woodward's easYgen-100 Series of genset controllers provides exceptional versatility and value for OEM genset packagers.

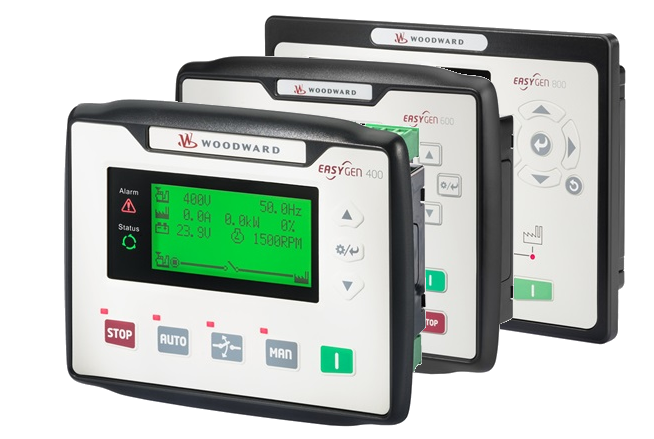

The easYgen-100 Series is available in three versions:

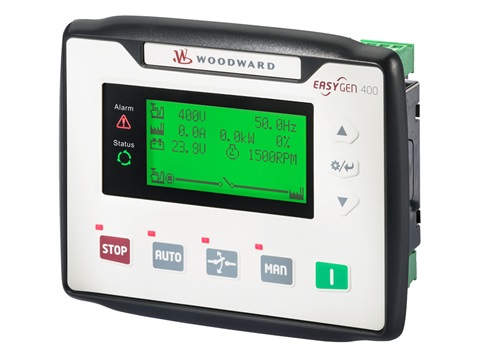

  • 8440-2250 - easYgen-400 small start/stop controller contains a big liquid crystal display (LCD), configurable I/Os and electronic engine support.

  • 8440-2252 - easYgen-600 compact start/stop controller offers a state-of-the-art LCD, adequate on-board I/Os and common industrial connectivity

  • 8440-2254 - easYgen-800 advanced start/stop controller comes with a large LCD, I/O expansion capability, Ethernet and SD card connectivity

easYgen 100 Series (UL,CE)

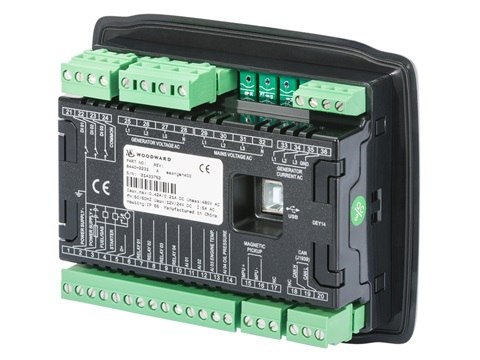

Part Number: 8440-2250

Genset Start/Stop Control


Please contact us if you need more informations.
Variants Overview Table
  • Hardware

This combination does not exist.



Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days




Application:

  • Manual and Remote Start/Stop application in:

    • Single-unit isolated operation

    • Stand-by operation

    • Prime power operation

    • Rental power operation

  • Easy to set up and commission

  • Comprehensive engine, and generator protection

  • Engine ECU interface to electronic engines

  • Programmable I/Os

  • Power metering

  • Communication ports:

    • CAN J1939, RS-485, USB

  • Dedicated relays for engine and breaker interface

  • Switchable parameter sets for mobile genset applications

  • Can be configured from computer or front panel

  • Event log and eventtriggered data log

ToolKit-SC is a single service tool for configuring easYgen-100 and -1000 series controllers. The module's password-protected integral front panel lets you adjust various parameters on-site.

Features:

  • Three-phase true RMS power sensing

  • Operation modes: AUTO, STOP, and MANUAL modes accessible through front panel, discrete inputs or via interfaces

  • Remote control via multiple interfaces and discrete inputs

  • Direct support of several ECUs such as Bosch, Cummins, John Deere, MTU, Perkins, Scania, Volvo, Woodward

  • Dedicated relay outputs for cranking and fuel solenoid

  • Event and data logging capabilities with real time clock

  • Maintenance scheduler with multipurpose flexible timers

  • Operating hours, start, maintenance counters and monitoring

  • Three switchable parameter sets of AC system winding, Rated Voltage, Rated Frequency, Rated Current, Rated Power, Rated Speed

  • Can be configured from computer via USB or front panel with password protection

  • Manual breaker operation with tactile buttons on front panel

  • Custom boot-up logo with adjustable screen display time

  • Multilingual customizable user interface

Downloads

Specification

Name Open
EASYGEN-100-SERIES PRODUCT SPECIFICATION Open
EASYGEN-100 PRODUCT SPECIFICATION Open
EASYGEN-600 800 PRODUCT SPECIFICATION Open

Manual

Name Open
EASYGEN-800 TECHNICAL MANUAL Open
TECHNICAL MANUAL EASYGEN 600 Open
EASYGEN-400 TECHNICAL MANUAL Open
