The MCDLV4 protection system protects cables and lines up to 24 km.

The system is able to replace up to six protection devices.

  •  2 Cable and Line Differential Devices
  • +2 Directional Feeder Backup Devices
  • +1 In-Zone Transformer Differential Device
  • +1 Mains Decoupling Device

= 6 devices combined in one system

The protection functions of the MCDLV4 have been adapted to comply with the requirements of the VDE‑AR‑N‑4110:2018.

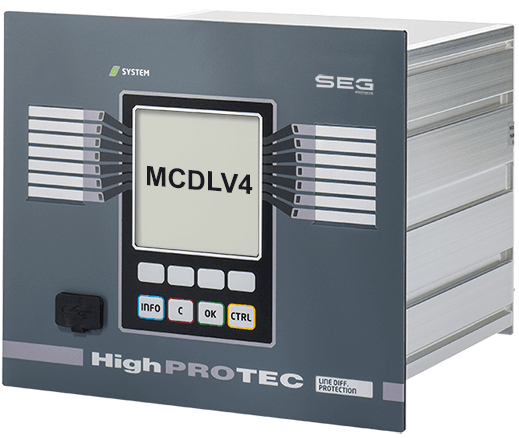

MCDLV4-2 highPROTEC Series

Part Number: MCDLV4-2A0A0AA

Line Differential Protection


Housing type: Housing suitable for door mounting


Please contact us if you need more informations.
Variants Overview Table
  • Hardware
  • Measurement
  • Housing type
  • Interdevice Communication
  • Communications
  • Environment

This combination does not exist.



Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


 MCDLV4-2

  • Wide range power supply: 24 … 270 VDC / 48 … 230 VAC

  • VT measurement from 0 V up to 800 VAC (300 VAC for some order options)

  • CT measurement always with 1 A and 5 A

  • Plausibility verification intelligence
    Optimized functional overview by hiding unused functions, parameter and assignments

  • On-board testing without removing the wiring

  • Menu Languages supported: English, German, Spanish, Portuguese, French, Russian, Polish, Romanian

  • Highly Selective, high speed detection of faulty cables/lines.

  • Enabling uninterrupted power supply to facility like Airports, Data Centers, Waste Water Stations,…)

  • On redundant fed HV/MV rings architectures, faulty lines can be switched off with highest speed without any dark time for the rest of the facility.

  • Making time and current grading obsolete. Don’t need to wait for timers or delays of upstream or downstream breakers.

Downloads

Specification

Name Open
DOK-FLY-MCDLV4-2D.pdf Open
DOK-FLY-MCDLV4-2E.pdf Open

Manual

Name Open
MCDLV4-3.7-DE-MAN_C.pdf Open
MCDLV4-3.7-EN-MAN_C.pdf Open
