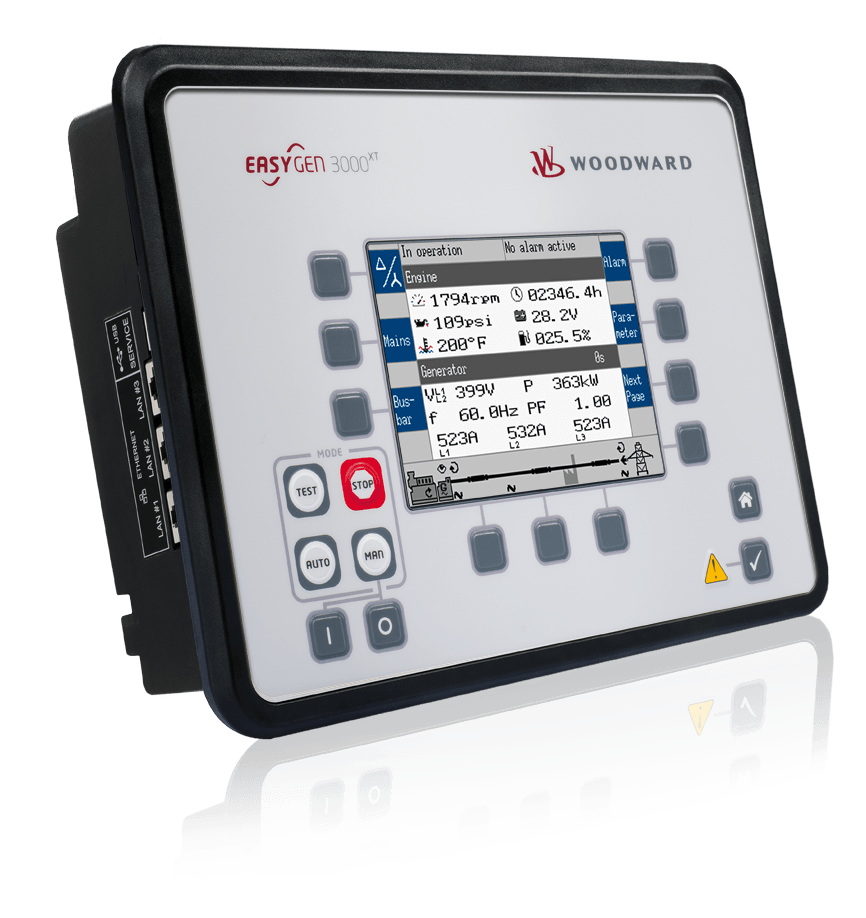

easYgen 3400/3500 XT Series

Part Number: 8440-2085

Genset Controller for Complex Paralleling Operation


Please contact us if you need more informations.
Variants Overview Table
  • Hardware
  • Housing type
  • Environment

This combination does not exist.



Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Further development of the easYgen3100/3200XT

in addition to functions of the easYgen3200XT makes it possible:

• with easYgen-3500XT and LS-5: 32 gensets and 16 breakers (Tie/GGB/MCB) or 16 gensets and 32 breakers on CAN bus,

• with easYgen-3500XT and LS-6XT: 32 gensets and 32 breakers (Tie/GGB/MCB) on single or redundant Modbus/TCP,

• with easYgen-3500XT and GC-3000XT: 496 gensets, one generator group breaker and one mains circuit breaker,

• with easYgen-3500XT, LS-6XT and GC-3000XT: The control topology is cascaded in three layers.

Layer-1 consists of easYgen (and also LS-6XT),
Layer-2 group controls and
Layer-3 LS-6XT.

At Layer-1 total 496 gensets (16 x 31), at Layer-2 16 Group controllers and at Layer-3 64 LS-6XT on up to 128 segments are supported. Communication between Layer-1 and Layer-2 controls is CAN, Ethernet A or hot redundant CAN/Ethernet A and between Layer-2 and Layer-3 controls is Ethernet B, Ethernet C or hot redundant Eth B/Eth C.

• Run-up synchronization / Dead Field Paralleling to quickly get several synchronous generators onto the load.

Downloads

Specification

Name Open
easYgen 3400/3500 XT - 3500XT-LT P1-P2 - Product Specification Open

Manual

Name Open
easYgen 3400/3500 XT - 3500XT-LT P1-P1 - Technical Manual Open
easYgen 3400/3500 XT - 3500XT-LT P1-P2 - Technical Manual Open
easYgen-3000XT - Flash Instruction Open
