• Interconnection of renewable energies (DER – distributed energy resources) to the public grid.

  • Over- / Undervoltage protection.

  • Protection of High, Medium and Low Voltage feeders against thermal damages by overload or short circuit currents.

  • Protection of High, Medium and Low Voltage feeders against overvoltage (insulation damage) and undervoltage.

  • Frequency based protection option, examples:

    • Over-/Underfrequency supervision

    • Load shedding by ROCOF

  • Auto reclosure option to fix short duration faults (like bird flying through overhead lines, ice on lines, lightning’s hitting overhead lines, wind caused arcing by on overhead lines.

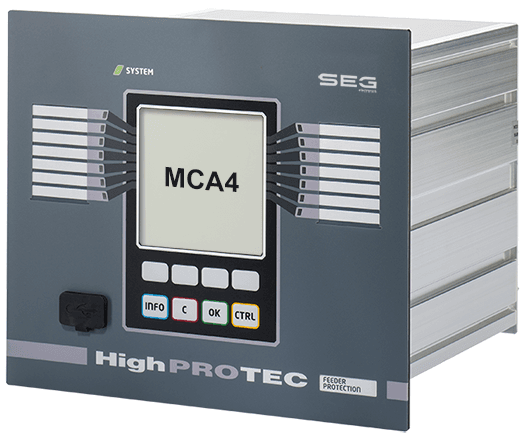

MCA4-2 highPROTEC Series

Part Number: MCA4-2A0AAA

FEEDER PROTECTION AND INTERCONNECTION OF DECENTRALIZED ENERGY RESOURCES


Please contact us if you need more informations.
Variants Overview Table
  • Hardware
  • Measurement
  • Housing type
  • Communications
  • Environment

This combination does not exist.



Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


MCA4

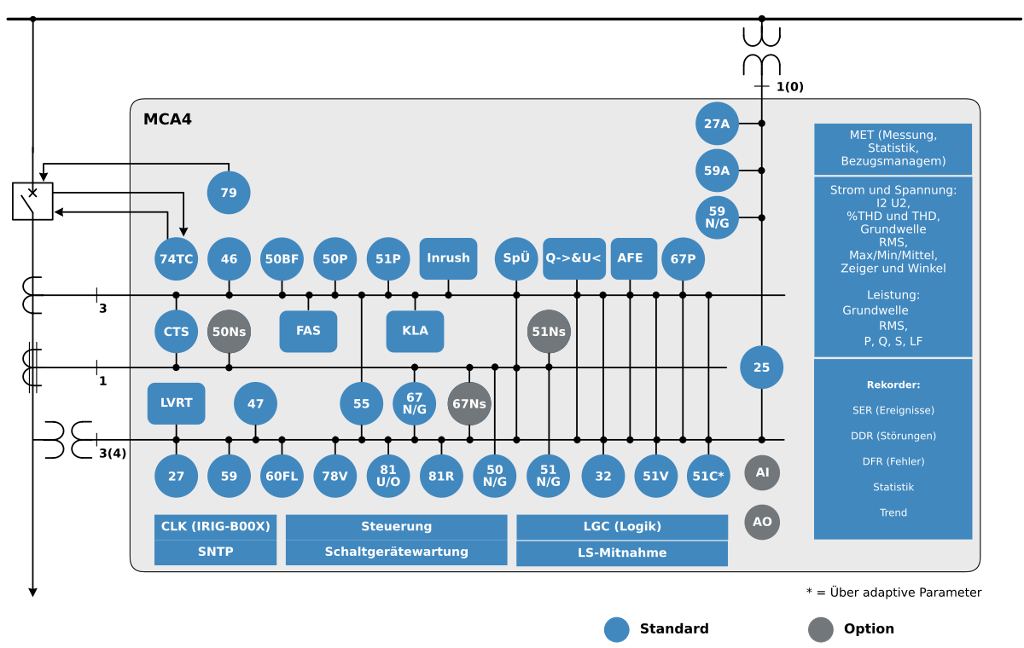

is a precise and reliable protection, control and monitoring relay for feeder, grid and generator applications. It incorporates all the ANSI and IEC concepts to comply with ever changing grid interconnection requirements.

Flexibility in hardware, software, application, user interface and communications makes the MCA4 adaptable to requirements today and in the future.

The protection functions of the MCA4 have been adapted to comply with the requirements of the VDE-AR-N-4110/4120:2018.

The parameterizing and analyzing software Smart view is usable for each HighPROTEC device and free of charge.

Downloads

Specification

Name Open
Housing Door Cut-Out Open
highPROTEC Overview Open
Product Specification Open
Dimension Panel Mount Open
Other Protection Devices Open

Manual

Name Open
Technical Manual V. 2 Open
Technical Manual V. 1 Open

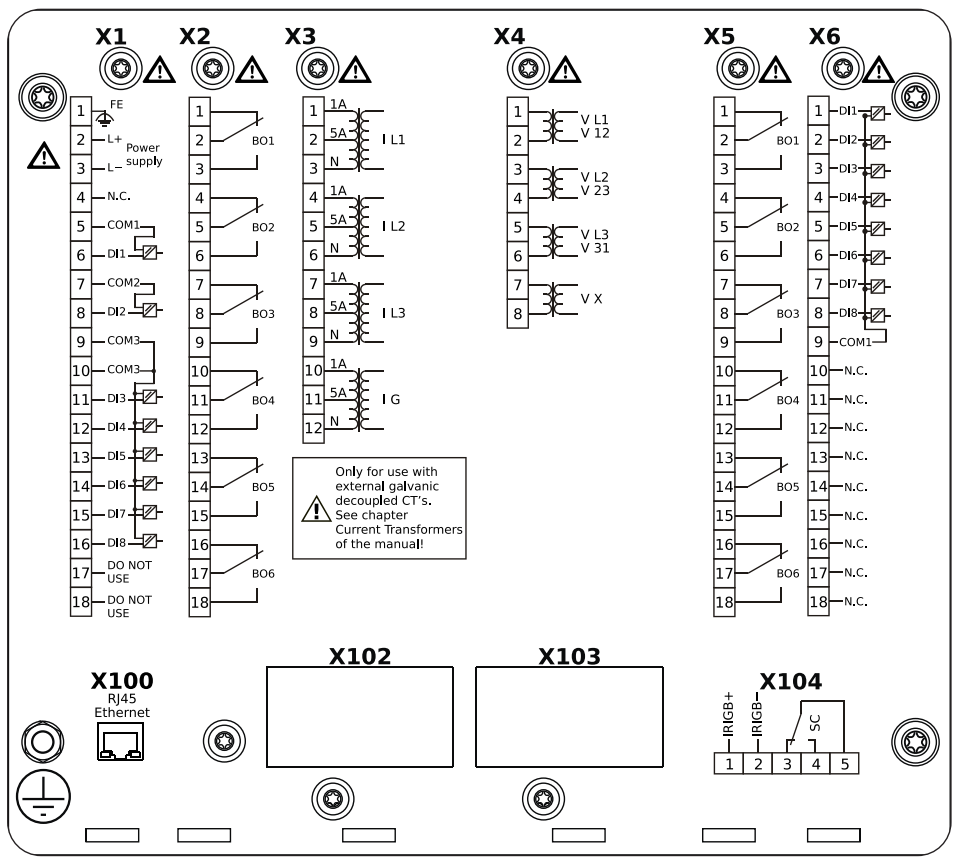

Wiring Diagram Open

Approval

Name Open
Compliance Open
