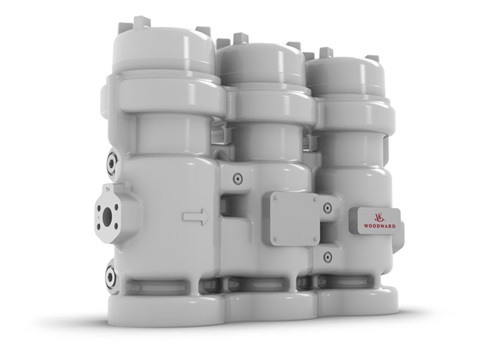

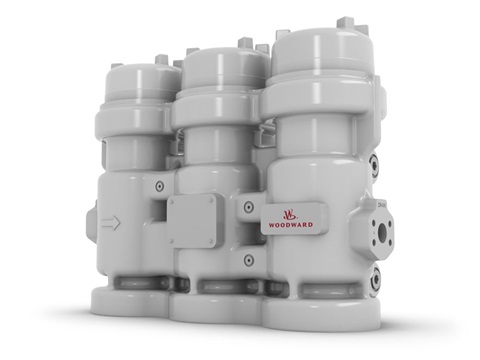

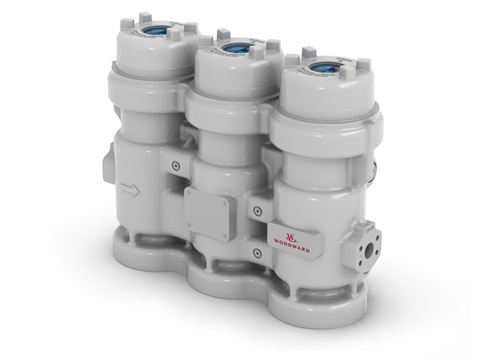

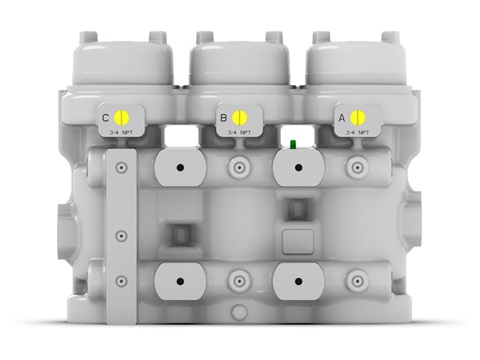

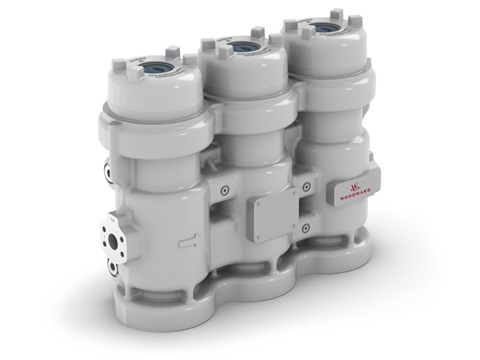

The QuickTrip trip block assembly

is designed for use in steam, gas, and hydro turbine shutdown systems for quick and reliable dumping of the turbine’s trip oil header. This integrated trip block assembly is intended for use on mechanical-drive or generator-drive steam turbines that use lowpressure (5–25 bar / 73–363 psi) hydraulic trip oil headers.

VALVE-ASSEMBLY, QUICKTRIP

Part Number: 0-9907-1978

Electro-hydraulic Trip Block Assembly


Please contact us if you need more informations.
Variants Overview Table
  • Compliance

This combination does not exist.



Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Features

  • Dirt-tolerant design

    • No orifices to plug

    • 25 lb rotary chip shear force

    • Self-cleaning valve design

  • Fast trip times

    • < 50 ms solenoid action

  • Increased reliability

    • 2-out-of-3 voting design o Repairable online

    • No single-point failure

    • Testable online

  • Safety certified for use in IEC61508 SIL-3 systems

  • API-670 Compliant

    • Local & remote position indications

    • Local—LEDs o Remote—Relays

  • Compact size

  • Certified for hazardous locations

    • CSA Class I, Div. 1 & 2

    • ATEX Zone1 & 2

    • IECEx Zone1 & 2


Downloads

Specification

Name Open
QUICKTRIP ELECTRO-HYDRAULIC TRIP BLOCK ASSEMBLY Open
QUICKTRIP ELECTRO-HYDRAULIC TRIP BLOCK ASSEMBLY FOR INDUSTRIAL STEAM TURBINES Open

Manual

Name Open
QUICKTRIP ELECTRO-HYDRAULIC TRIP BLOCK ASSEMBLY Open
