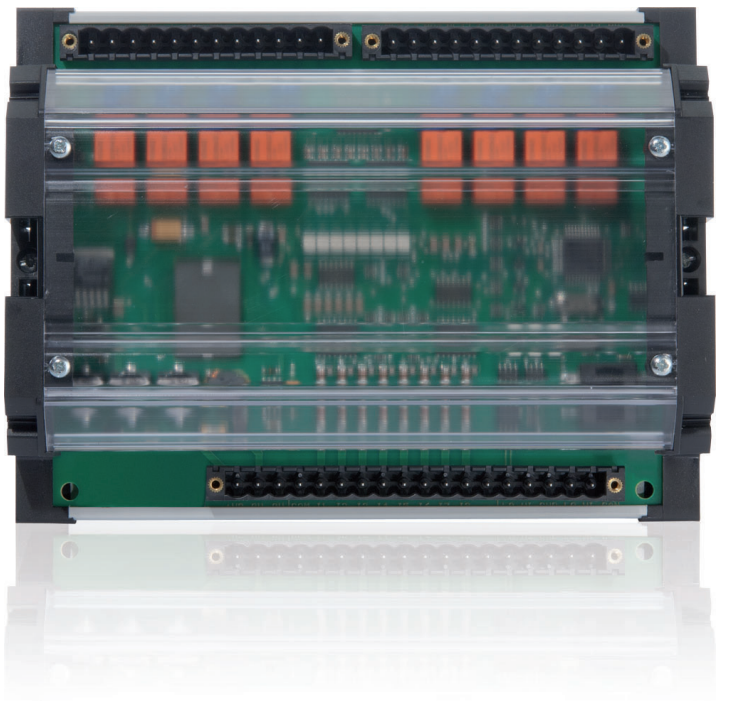

IKD1M - Digital I/O Expansion Board

The IKD 1 is a smart solution to increase numbers of digital I/O’s up to 32 to Woodward easYgen series controllers.

CONTROL-IKD1M

Part Number: 8440-2116
https://www.turner-ecs.com/web/image/product.template/24742/image_1920?unique=edbafb1

Digital I/O Expansion Board for EASYGEN


Please contact us if you need more information.

    This combination does not exist.




    Terms and Conditions

    Features

    • 8 configurable discrete alarm inputs

    • 8 configurable FORM C relays with potential free contacts

    • Configurable delays for each input

    • CAN bus communication

    • The discrete inputs transfer their status via CAN bus to the control unit.

    • The control unit evaluates the status of these discrete inputs coming from the IKD 1 and depending on the configuration of the control unit, will take the appropriate action.

    • The control unit can send commands via the CAN bus to remotely control the output relays of the IKD 1.

    • The IKD 1 can be used with other manufacturer's controllers. Turner - technical support

    Downloads

    Specification

    Name Open
    IKD 1 PRODUCT SPECIFICATION Open

    Software

    Name Open
    Application Note IKD Configuration Tool.pdf Open
