Woodward easYgen-1000 series
is designed for a single-generator set used in critical stand-by or prime power applications with automatic changeover capability. The controllers include purpose-built algorithms and logic to start, stop, control, and protect the genset, open/close circuit breakers and mains supply monitoring with automatic changeover. Equipped with state-of-the-art communication interfaces, Woodward's easYgen-1000 Series of AMF genset controllers provides exceptional versatility and value for OEM genset packagers.

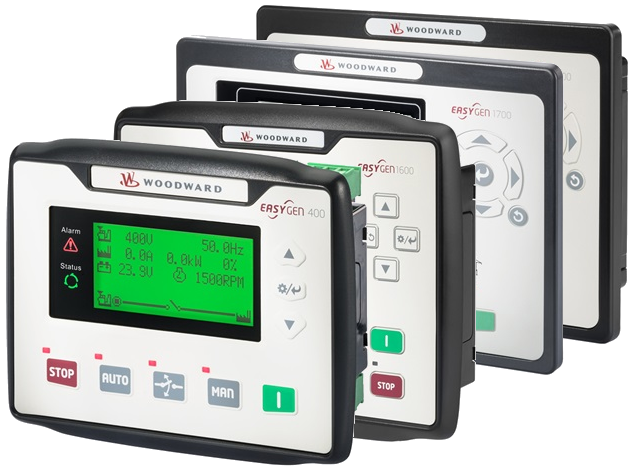

The easYgen-1000 Series is available in four versions:
8440-2255 - easYgen-1800, advanced AMF controller comes with a large liquid crystal display (LCD), I/O expansion capability, Ethernet and SD card connectivity
8440-2256 - easYgen-1700, based on easYgen-1800 platform, easYgen-1700 offers all the capabilities except Ethernet and SD card connectivity and a 240x128 pixels Monochrome LCD in same size.
8440-2253 - easYgen-1600, compact AMF controller offers a state of the art LCD, adequate on-board I/Os and common industrial connectivity

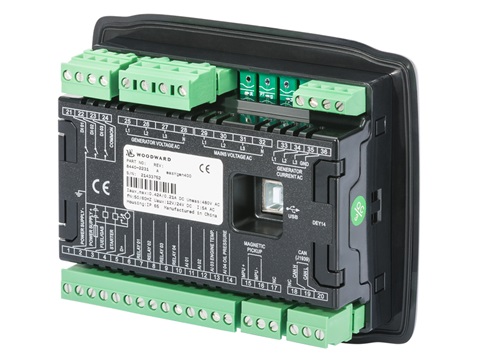

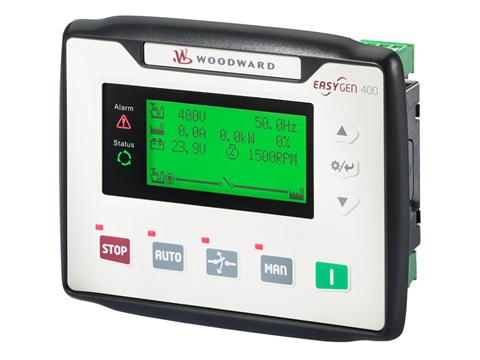

8440-2251 - easYgen-1400, small AMF controller contains a big liquid crystal display (LCD), configurable I/Os and electronic engine support.
ToolKit-SC is a single service tool for configuring easYgen-100 and –1000 series controllers. The module's password-protected integral front panel lets you adjust various parameters on-site.
easYgen 1000 Series (UL,CE)
Automatic Mains Failure Control
Please contact us if you need more information.
Application:
Standard break-before-make application in
Stand-by operation
AMF (Automatic Mains Failure) operation
ATS (Automatic Transfer Switch) operation
Rental power operation
Peak shaving operation
Easy to set up and commission
Best in class large liquid crystal display
Comprehensive engine, generator and utility protection
Engine ECU interface to electronic engines
Programmable I/Os
Six communicationports:
Ethernet TCP/IP,
CAN J1939, RS-485,
RS232, USB,
SD card slot
Dedicated relays for engine and breaker interface
Switchable parameter sets for mobile genset applications
Event log and eventtriggered data logWrite one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Features
Three-phase true RMS power sensing
Operation modes: AUTO, STOP, and MANUAL modes accessible through front panel, discrete inputs or via interfaces
Remote control via multiple interfaces and discrete inputs
Direct support of several ECUs, such as Bosch, Cummins, John Deere, MTU, Perkins, Scania, Volvo, Woodward
Dedicated relay outputs for cranking and fuel solenoid
Event and data logging capabilities with real time clock
Maintenance scheduler with multipurpose flexible timers
Operating hours, start, maintenance counters and monitoring
Three switchable parameter sets of AC system winding, Rated Voltage, Rated Frequency, Rated Current, Rated Power, Rated Speed
Can be configured from computer via USB or from front panel with password protection
Manual breaker operation with tactile buttons on front panel
Custom boot-up logo with adjustable screen display time
Multilingual customizable user interface
Downloads
Specification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Name | Open | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EASYGEN-1000-SERIES PRODUCT SPECIFICATION | Open | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| EASYGEN-1000 PRODUCT SPECIFICATION | Open | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manuals |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Name | Open | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| EASYGEN-1800 TECHNICAL MANUAL | Open | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TECHNICAL MANUAL EASYGEN 1600 | Open | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| EASYGEN-1700 TECHNICAL MANUAL | Open | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| EASYGEN-1400 TECHNICAL MANUAL | Open | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
